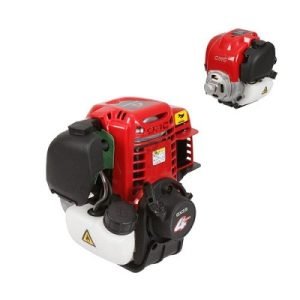

Honda 4 stroke Gx35cc 1.3hp petrol OHC Engine



General Purpose Engines

The power rating of this engine is the net power tested on a production engine for this engine model and measured in accordance with SAE J1349 at a specified rpm.

The world’s first 360° inclinable 4-stroke engine, for operation in any position
The OHC design driven by a maintenance-free, low-noise timing belt, makes the engine more compact and light
  • Easy starting, low noise and superb acceleration
  • High quality materials and purpose-built components ensure reliable long-term use
  • Meets world’s most stringent environmental legislation
  • Low fuel and oil consumption
Share This Product


Bore X Stroke (mm) 39 x 30 mm
Compression ratio 8.0 : 1
Description Code 4-stroke single cylinder OHC petrol engine
Fuel Tank Capacity (L) 0.63 Liter
Ignition System Transistorised
Net Power 1.0 kW ( 1.3 HP ) / 7000 rpm
Oil Capacity 0.1 Liter
Starting System Recoil
Dry Weight(Kg) 3.33 kg
Displacement 35.8 cm?3;
Dimensions (L x W x H) 198 x 234 x 240 mm
Fuel cons. at cont. rated power 0.71 L/h – 7000 rpm
Max. net torque 1.6 Nm / 0.16 kgfm / 5500 rpm
Lubrication Oil mist
