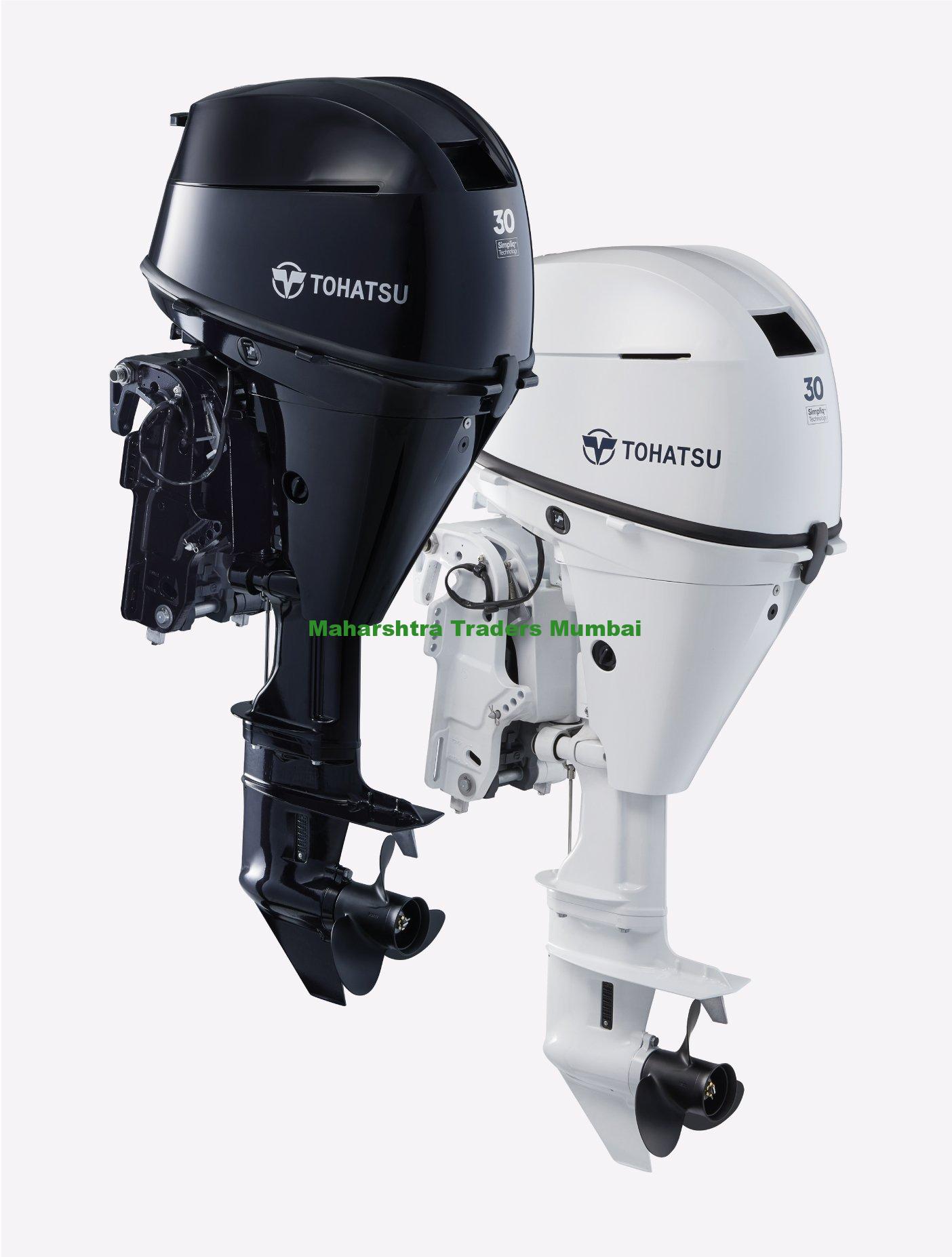

Tohatsu MFS30D MID RANGE 4-Stroke 3 Cylinder OUTBOARD MOTOR

GST EXTRA & TRANSPORT EXTRA

Engine 4 Stroke 3 Cylinder
Output 30 ps (22.1 kw)
Displacement 500 cc (30.5 cu.in.)
Bore x Stroke 61 x 57 mm (2.4 x 2.25 in)
Max. RPM Range 5,500 – 6,500
Starting Electric or Manual
Control Type Remote Control or Tiller Handle
Gear Shift Forward – Neutral – Reverse
Gear Ratio 2.17:1 (12:26)
Propeller Selection Range 8″ – 14″
Transom Height 15″, 20″
Fuel Unleaded Gasoline (87 Octane)
Oil Type NMMA Certified FC-W® 4-stroke oil** SAE 10W-30/40 (SF, SG, SH, SJ)
Oil Capacity 1.7L (1.8 qt.)
Fuel Tank 25 L (6.6 US Gal.) Separate Fuel Tank
Weight* 58 kg (128 lbs.)
Alternator Output 12V, 210W, 17.5A
Electronic Fuel Injection Standard
Digital CD Ignition System Standard
Start In Gear Protection Standard
Thermostat Controlled Cooling System Standard
Through-The-Prop Exhaust Standard
Overheat Buzzer Standard
Oil Pressure Warning Standard
Power Trim and Tilt Option
Variable Idle Speed Standard
Shallow Water Drive Standard

Tohatsu 30 hp 4-Stroke Benefits

  • Versatile and lightest 3 cylinder 30 hp
  • All new sleek design with two color options: Aqua Marine Blue and Beluga White
  • Available in variety of model-types; S, L, ES, EL, ETS, and ETL with Basic Tiller, Multi-function tiller, or Remote control
  • Best in class power-to-weight ratio provides excellent performance for all styles of boats from light weight to heavy weight
  • Advanced cross-flow induction for smooth operation
  • Ultra Low emission, EPA and CARB approved

High Performance and Easy Operation

  • Optimized gear ratio 2.17:1 gives you better low end torque and the ability to turn a higher pitch prop for better top end performance
  • Battery-less manual start Electronic Fuel Injection 4-stroke
  • Digital CD ignition system for quicker starts
  • High output 17.5 amp alternator
  • Adjustable steering friction and trim tab for reducing steering effort
  • Manual tilt models are equipped with shallow water drive, 6 tilt positions*
  • Power trim and tilt*

Fundamentals for User Convenience and Reliability

  • Built in fresh water flush system on drive shaft housing for easy access
  • No-mess oil filter drip pan located underneath the engine oil filter
  • Tool-free clear fuel filter with floating indicator ring provides detection of water in the fuel system and allows quick and easy service
  • Through-the-prop exhaust for a quieter ride
  • Thermostatically controlled cooling system for consistent engine temperature
  • Stainless steel water pump housing liner for outstanding durability
  • High grade marine aluminum alloy that provides the ultimate protection against corrosion
  • Zinc coating on internal water passages for superior corrosion resistance
  • 25 liter (6.6 gallon) fuel tank including fuel fittings and fuel line
  • Aluminum propeller

Warning and Protection

  • Overheat warning (audible and visual)
  • Low oil pressure warning (audible and visual)
  • Safety lanyard (an essential protection feature standard on all Tohatsu outboards)
  • Start-in-gear protection for safer engine starting
  • Over-rev. limiter (audible and visual)
*Certain models
